Introduction
Way with the radio remote data collection, monitoring and control, as opposed to set up special cable (or cable), rental of telecommunication lines, etc., with low cost, quick construction, reliable operation, easy maintenance and so on.
Shenzhen Sinosun's SCADA series digital radio digital signal processing, error correction coding, software radio, digital modem and an integrated design, surface mount technology, high performance, high reliability and strong anti-interference characteristics, provides a standard radio RS232 data interface directly with the computer, RTU, PLC, GPS receivers, digital cameras, data terminals and other connections, transfer rates up to 19200bps, BER less than 10E-6 (reception level-110dBm), the transmit power 0.5-25 tile can be adjusted, any model can be set to master station or remote station use, transit-free communication distance of 50 km, able to adapt to the harsh indoor or outdoor environment. Radio data and voice compatible, can work in simplex, half duplex, time division duplex TDD, full-duplex mode, receive the same frequency or different frequency transit network, and with remote diagnostics, testing, regulatory functions, or meet the needs of industry dispatch control center and many remote stations for data acquisition and control.

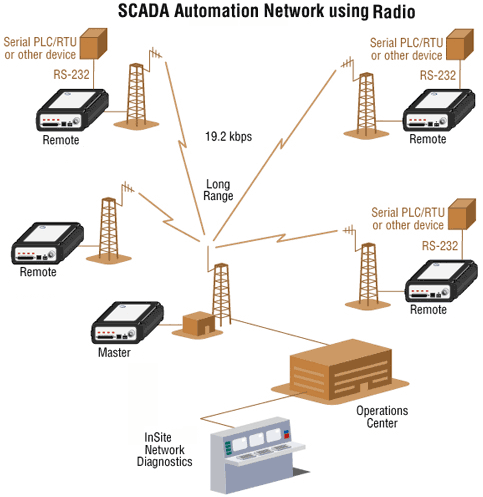

System Architecture
Shenzhen Huaxia Sheng company with a portfolio of SCADA stations set up oil / gas, water, electricity, gas, railways, seismic / weather / environmental, GPS, finance, public security / transport / security, chemical, industrial control automation, data acquisition and control system structure below:

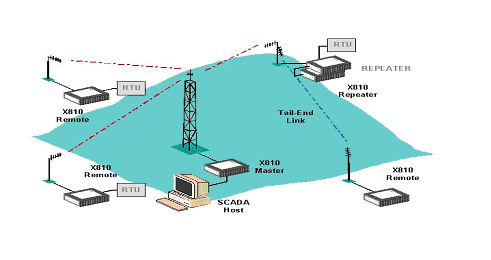

Multipoint wireless data acquisition monitoring system (with remote relay)
Typical examples

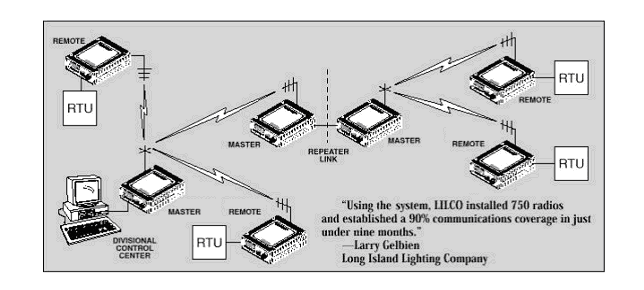

1. Force rural power network SCADA / distribution automation / remote metering / electrical load management system
Central dispatch station located in the building power supply bureau, radio RS-232 data port directly connected to SCADA system communication front-end; outside the station for the Office in the substation, switchgear, transformers, radio connection RTU / FTU. System uses polling or CDT work, transmission rate 19200bps. Central station radio can be prepared hot standby switch automatically.
Automatic recovery system, power companies
Shenzhen Sinosun's radio as small, rugged, reliable, working temperature range (-30 ~ +600 c), the outdoor work, making it suitable for distribution automation data communications network, in the distribution network has been widely used. CLP Power Hong Kong's distribution automation project using the 400 sets of WDS 4310 data radio. Power industry in China's Shenzhen Sinosunhas been installed more than 40,000 digital radio sets, stable and reliable. China Dalian Electric Power Bureau, Yancheng, Jiangsu Electric Power, Weifang, Shandong Electric Power Distribution Automation project using Shenzhen Sinosundigital radio.

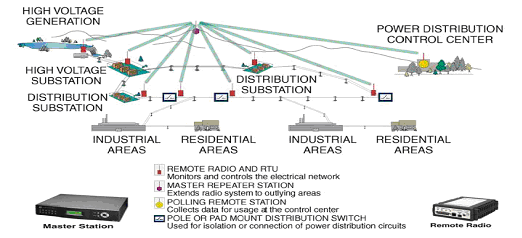

Wireless Electric Distribution Management
Water / arid water / wastewater treatment control / watershed hydrological forecasting of wireless data communication network
The network for the monitoring and data acquisition system. Central Station is located in the company dispatch center, the main radio station via RS-232 data port is connected with the front-end, and then connect to the corporate LAN servers; outside the stations are located in the water plant, water treatment plants and water supply pipe network of monitoring points, station is directly connected with the collection terminal can monitor and collect water level, pressure, flow, turbidity, chlorine, pumps, frequency and other data for the company's dispatch center and access to relevant analysis and decision-making, improve efficiency, ensure water quality. Some sites, radio stations directly linked to the tower, the outdoor run, to reduce the construction funds. Beijing Shijingshan Yangzhuang water, Changshu, Jiangsu water plant and dozens of water used Shenzhen Sinosun digital radio.

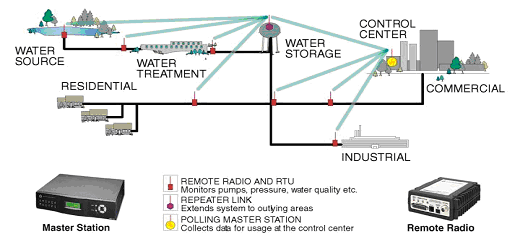

Wireless Water/Wastewater Management

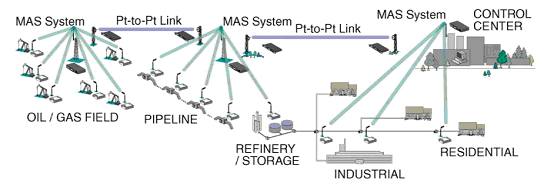

Oil / gas / gas pipeline SCADA system
Shenzhen Sinosun radio for field supervisory control and data acquisition system, the system central station located in the field of data acquisition and control center, stations are located in the outer wells, oil stations, pipeline network monitoring points, etc.; can monitor and capture oil pressure, flow, consistency, temperature, level and other parameters, and control the oil extraction machine start and stop. Xinjiang Tarim Oilfield, Cainan oilfield, Turpan-Hami Oilfield, Shengli Oilfield sea beach SCADA system using Shenzhen Sinosun nearly 1,000 digital radio. The system has been running for years, stable and reliable performance. Currently all oil and gas fields in China's Shenzhen Sinosun station to use more than 60,000 units, SCADA system of choice for oilfield equipment.
Oil / gas data collection and monitoring system
Rail / industrial and mining automation
Shenzhen Sinosun radio station with the railway, mining, and other large enterprises to achieve real-time monitoring of the production process, instead of twisted pair cables, set up with easy installation, removal or removed easily and so on.
Automatic train information collection system
City street light monitoring / weather / environmental data in three remote systems
Shenzhen Sinosun station for city street monitoring, meteorology, environmental protection departments of remote data acquisition and control, high-speed, reliable features, instead of DDN lines, saving the cost of funds.

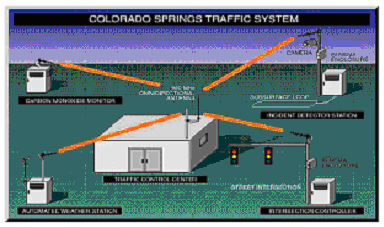

Urban traffic light control system engineering
Device Configuration
System device configuration required for the program are as follows:
1. Simple main station (radio, switching power supply, cable and antenna, cable, lightning arrester)
2. Sub-station (radio, switching power supply, cable and antenna, cable, surge arresters)
Options:
Hot standby master station type
(Radio X2, hot-standby switch, power supply, Antenna, surge arresters, cable)
Duplex-type master
(Radio X2, 25W amplifier, duplexer, power supply, Antenna, surge arresters, cable)
Transfer Station
(Radio X2, 25W amplifier, duplexer, power supply, Antenna, surge arresters, cable)
D. High-gain omnidirectional antenna (Guangzhou Communication Research Institute, 9dB, for 20 km distance communications set up master)
E, the gain omnidirectional antenna (Guangzhou Communication Research Institute, 6dB, for 20 km distance communication set up master)
F, high-gain directional antenna (Guangzhou Communication Research Institute, 12dB, for 20 km distance communication set up sub-stations)
G, the gain directional antenna (Guangzhou Communication Research Institute, 9dB, for 20 km distance communication set up sub-stations)
H, sucker antenna (Guangzhou Communication Research Institute, 5dB, for 15 km near field communication set up master or sub-station)
I, low-loss feeder (Zhuhai Hamilton Sundstrand, 12DFB, used to set up an outdoor antenna)
J, switching power supply (13.8V/10A, DC power supply)
K, voice intercom module (for each remote station intercom calls between the main station)
L, arrester (Japan diamonds, antenna lightning protection use)
Note:
Master sub-station radio company can choose a variety of bands, Shenzhen Huaxia Sheng product specifications, prices are different.
Some users
Guizhou, a water plant, Guangzhou-Meizhou-Shantou Railway, Hangzhou, light engineering, oil field in Xinjiang, Xuanhua steel, Bohai Oilfield, a unit of Nanjing, Liaohe Oilfield, Zhuhai water, Xiaoshan water, water plant in Shanghai, Nanjing, water, East Sichuan Gas , a heating company in Urumqi, Nanchang Railway Bureau, Suzhou Railway Bureau.
