Main features and technical specifications
1. Point to point wireless data / voice / video transmission
2. Working frequency: 330 ~ 512/800 ~ 960/1400 ~ 2400MHz
3. Radio transmitter output power: 1 W, the receiver bit error sensitivity of-95dBm / (BER <10-6)
4. Communication distance: 50 km
5. Data: 64K ~ 8Mbps, 10Base-T interfaces
6. Voice transmission: 1 or multiple standard telephone, RJ11 Interface
7. Image transmission: a way to multi-channel, PAL / NTSC system, 25 frames / sec.
8. Provides one standard 232 and 1-channel intercom service
System Architecture
|
|
|||
|
|
|||

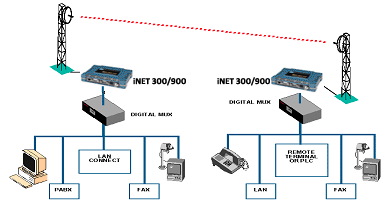

Structures: point-to-phone audio and data transmission

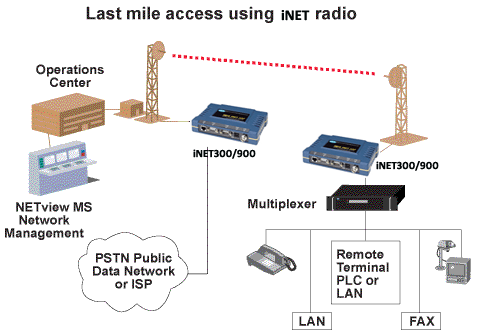

Structure of the two images: the last mile access
Device Configuration (to LEDR radio, for example)
1. Broadband Radio (LEDR F-type, 8Mbps, G.703 interface)
2. Antenna (high-gain directional antenna, Andrew cable 50 meters)
3. Multiplexer (voice data image MUX2100 type, 10Base-T data in a way, RJ11 telephone 8, PAL / NTSC Image 1 Road)
4. Power rack and installation accessories
