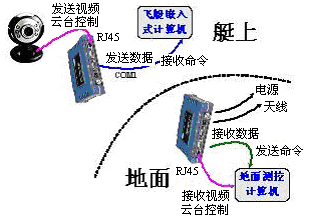

Video transmission:
In the boat, no video servers, network cameras send live video through the network cable to the RJ45 Ethernet port iNET300;
Boat on the real-time video to iNET300 ground iNET300;
Ground iNET300 real-time video transmitted to ground control computer.
Telemetry data:
In the boat, the embedded computer telemetry data transmitted via the serial port to iNET300 serial port 1;
Boat on the iNET300 the telemetry data to ground iNET300;
Ground iNET300 telemetry data from the serial port 1 to send ground control computer.
Remote command transmission:
On the ground, remote monitoring and control computer commands sent through the serial port to iNET300 serial 2;
Ground iNET300 the remote command sent to the boat on the iNET300;
Boat on the iNET300 remote commands from the serial port 2 will send the boat on the embedded computer.
PTZ Control:
Boat on the webcam can be three PTZ camera lens can be packaged with the video data transmitted by the network.
Ground remote PTZ network camera supporting software.
iNET300 interface issues:
Noted iNET300 there are two interfaces, one power port, the other is the antenna connector.
